I remember staring at my screen in total disbelief while my frame rates plummeted during a critical project export. The fans on my expensive new graphics card were screaming like a jet engine, and the side panel was so hot I could have fried an egg on it. I’d spent hours following various pc cooling strategies to keep your system cold and silent, yet my GPU was still hitting a blistering 85 degrees Celsius. I had three massive intake fans at the front. I thought I was doing everything right, but I was actually starving my card of the one thing it needed most: fresh, cold air from below. I made the classic rookie mistake of thinking that as long as air was moving into the front of the box, it would eventually find its way to the components. It doesn’t always work that way. Today, I am going to show you exactly why shifting your focus to the floor of your chassis will save your hardware and your sanity.
The GPU Thermal Trap You Are Probably Falling Into
Most modern PC cases are designed around a wind-tunnel concept where air comes in the front and goes out the back. While that sounds logical on paper, it often fails to account for the massive physical barrier that is your graphics card. In my early workstation builds, I completely ignored the impact of case pressure on your GPU lifespan, thinking more front intake would fix everything. Instead, the hot air was just swirling around the bottom of the case with nowhere to go. High-end GPUs now regularly consume over 450 watts of power, and according to thermal testing by experts at Puget Systems, this creates a concentrated heat pocket that standard front-to-back airflow often skips entirely. By adding a bottom intake, you are injecting cold air directly into the GPU fans, breaking that cycle of heat recirculation.

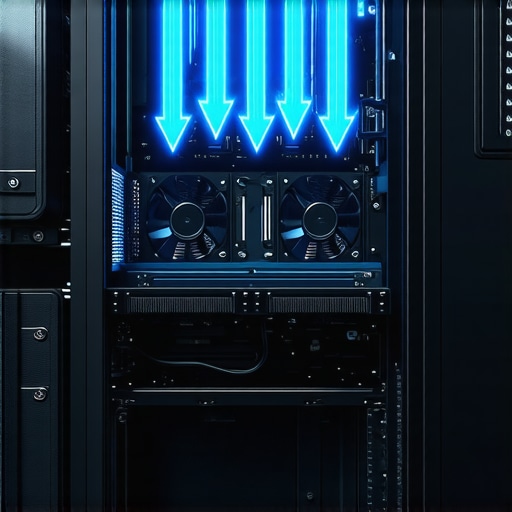

Does adding bottom fans just turn my PC into a vacuum cleaner?
It is the first thing everyone asks me, and I had the same fear. I envisioned my workstation becoming a magnet for every cat hair and dust bunny in the room. However, if you optimize your pc case for bottom-to-top airflow using high-quality dust filters and static pressure fans, you actually end up with a cleaner system because you are no longer relying on high-velocity front fans that pull in everything from the desk surface. Have you noticed your GPU fans ramping up to 100% even during relatively light tasks? That is the sound of a card gasping for air, and it is a problem we can fix in about ten minutes with a simple screwdriver.Before you even order a new set of fans, grab a ruler. You need to verify that your case floor isn’t just a solid sheet of metal. I learned this the hard way when I tried to mod an old server chassis that had zero ventilation on the bottom; I ended up having to take a Dremel to the floor, which was a nightmare of metal shavings and regret. Most modern workstation cases have a mesh bottom, but if you don’t have at least an inch of ‘leg’ height, your fans will just choke on the carpet or desk surface. This lack of air is often exactly why your gpu render times are slower than the benchmarks you see online. If you are low on space, look for ‘slim’ fans, but be warned: they rarely offer the same performance as standard 25mm thick models.
Check Your Case Clearance First
You want to create a direct path of resistance-free air. This means clearing out any unused HDD cages that might be blocking the path between the floor and the GPU. In a build I did last year, I found that just removing a plastic drive shroud dropped my VRAM temps by a staggering 6 degrees. Think of it like a chimney—if you block the bottom, the smoke (or in this case, the heat) just sits there.
Pick Fans That Can Fight Gravity
Not all fans are created equal when they are lying on their backs. I once made the mistake of using standard sleeve-bearing fans as bottom intakes. Within three months, they were making a grinding noise that drove me crazy. Because the fans are horizontal, gravity pulls the lubricant away from the bearing. You need Dual Ball Bearing or Fluid Dynamic Bearing (FDB) fans for this job. I strongly suggest you look into why high static pressure fans are better for case intake filters; these fans are designed to push air through the thick dust filters found at the bottom of cases. If you have the room, why 140mm fans are almost always quieter than 120mm fans becomes very apparent here, as they can move the same volume of air at a much lower RPM, keeping your workspace silent during long exports.

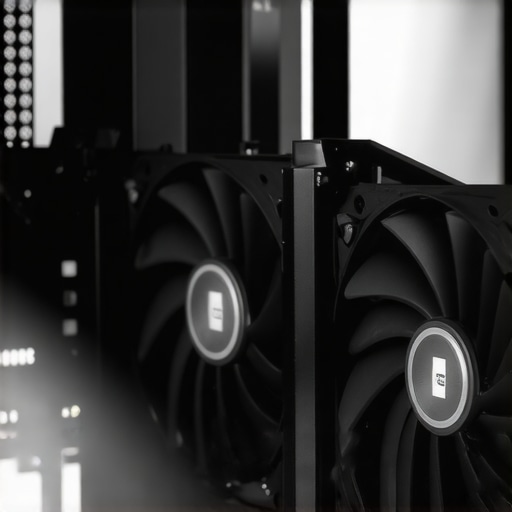

Installation Tricks for a Cleaner Bottom
When you mount these, the ‘pretty’ side of the fan should be facing up toward the GPU, while the side with the frame and the technical specs should face the floor. This ensures the air is blowing upward. Make sure you are using a magnetic dust filter on the outside of the case. It is much easier to peel off a filter and wipe it down once a week than it is to deep-clean the heat fins of a $1,500 graphics card.
Routing Cables to Avoid the GPU Tangle
The biggest hurdle is usually the mess of wires coming off the power supply. If you have a cluttered floor, the bottom fans will just blow warm ‘cable air’ up into the card. This is where why daisy-chainable fans are a life-saver for clean workstations. Instead of running three separate cables to your motherboard, you click the fans together and run one single wire. This leaves the area under the GPU open for maximum airflow. While you are down there, be careful about the problem with daisy-chaining power cables for high-end gpus. Keep those PCIe power cables tied back and away from the fan blades. I once had a loose zip-tie tail get sucked into a bottom fan, and the resulting ‘click-click-click’ sound was enough to make me want to throw the whole rig out the window.Let’s dig deeper into why simply throwing more fans at your chassis isn’t always the magic bullet it seems to be. Everyone says that more fans equals a cooler system, but in my experience, an unoptimized floor intake can actually cause more harm than good. I’ve seen enthusiasts pack three high-speed fans into the bottom of their case only to find their GPU temps remained stagnant. The culprit? Turbulence. When your bottom fans are spinning at 2,000 RPM while your GPU fans are only idling at 800 RPM, the sheer force of the intake air can create a ‘wall’ of pressure that actually prevents the GPU fans from drawing air in efficiently.
Don’t Just Throw Fans at the Problem
To avoid this, you need to sync your fan curves. I’ve found that keeping bottom intake fans at roughly 10% to 15% lower speeds than the GPU fans creates a much smoother laminar flow. If you ignore this, you’re just creating a chaotic vortex of air that never quite reaches the heat sinks. This is one of the most common mistakes people make when trying to fix thermals—they focus on volume rather than velocity and direction.
Can adding bottom fans actually make your CPU run hotter?
It sounds counter-intuitive, but it is a very real risk for air-cooled workstations. According to thermal stress testing by experts at Gamers Nexus, aggressively pushing air from the bottom can sometimes disrupt the natural exhaust path of a tower-style CPU cooler. If that cool bottom air hits the GPU, warms up, and is then forced upward into the CPU intake before it can reach the back exhaust, your processor will suffer. This is exactly why front mounted radiators can lead to higher gpu temperatures in other configurations; you are essentially moving heat from one critical component and dumping it onto another.
The Heavy GPU Sag Trap
There is a hidden nuance involving the physical geometry of your card. As cards get heavier, they tend to sag, which subtly changes the angle of the fan blades relative to the floor. In my last build, I noticed a 4-degree difference just by leveling the card. This is why your workstation gpu needs a support bracket to prevent pcb warp—it’s not just about aesthetics; it’s about keeping those fans perfectly parallel to your bottom intake for maximum efficiency.
Balance Your Internal Pressure
You also have to consider why positive airflow is better for keeping dust out of professional rigs. If your bottom fans are too powerful compared to your top and rear exhaust, you’ll create so much internal pressure that the air just sits there, getting hotter and hotter. I always recommend that builders prefer static pressure fans for the floor because they are much better at punching through the dense mesh and filters found at the bottom of a chassis. Without that extra ‘push,’ your fans might be spinning, but the air isn’t actually entering the case in any meaningful way. Have you ever fallen into this trap where adding more fans didn’t actually lower your temps? Let me know in the comments.It is one thing to get your airflow right on the first day, but it is a completely different battle to keep those temperatures stable six months down the line. I have seen too many editors ignore their rigs until a blue screen interrupts a critical deadline. Maintaining a high-end system requires more than just a can of compressed air; you need a proactive strategy to ensure your components do not throttle under pressure.
How do I maintain my workstation cooling over time?
I personally schedule a deep-clean every ninety days because dust buildup is the silent killer of fan bearings and heat sink efficiency. I do not just blow the dust around with my mouth; I use an electric high-velocity duster to push particles out of the radiator fins and PSU shroud. While you are in there, check for any oil leaks around fan bearings. According to technical documentation from Noctua regarding their SSO2 bearing systems, even the best fans can suffer if fine dust creates micro-oscillations that eventually lead to bearing failure. If you have moved things around or noticed your typing feels sluggish, you might also need to lube your mechanical switches without making a mess to keep your interface as responsive as your internal hardware.
Tools Every Professional Should Have in Their Drawer
I do not rely on the basic Windows Task Manager to tell me how my system is doing because it lacks granularity. I use HWiNFO64 religiously because it shows me the junction temperatures of my VRAM and the controller temps of my NVMe drives—areas that standard software often misses entirely. If you see your storage hitting 80 degrees during a file transfer, it is time to look at ssd storage solutions to boost your workflow speed in 2025 that include dedicated passive or active heatsinks.
Protect Your Data Before Your SSD Fails
Cooling isn’t just about the GPU; your storage health is tied directly to thermal management. High heat cycles are known to degrade NAND flash faster than almost any other factor. I always keep a utility open to monitor S.M.A.R.T. data so I know exactly how to identify if your ssd is failing before you lose any files. If you are doing heavy color grading, do not forget that your screen needs attention too. Learning how to optimize your monitor for professional photo editing includes regular calibration with a hardware colorimeter to ensure your panel is not shifting colors as it ages.
What the Next Five Years of Case Design Looks Like
I predict we are moving toward smart chassis environments where internal sensors will automatically adjust fan zones based on specific software signatures rather than just raw thermal spikes. We will see more cases designed for vertical airflow as a default standard, making the bottom-intake method the professional industry norm. My challenge to you: download a hardware monitor today and check your GPU Memory Junction temp during a heavy export session. If it is consistently over 95 degrees Celsius, those bottom fans aren’t just an optional upgrade—they are a necessity for your hardware’s survival.
What I Learned the Hard Way About Managing GPU Thermals
After years of building, I’ve realized that more airflow isn’t always better airflow. I once spent a fortune on high-speed exhaust fans, only to realize I was creating a vacuum that pulled dust through every tiny crack in the case. Now, I prioritize why positive airflow is better for keeping dust out of professional rigs because it keeps the internals pristine and prevents the ‘vacuum cleaner’ effect. Another lightbulb moment was realizing that the GPU shroud itself acts as a massive heat trap; if you don’t force air into those fins from the bottom, the heat just sits there regardless of how fast your front fans spin. Finally, I’ve learned that the reason your workstation is loud even when idling is almost always a poorly configured intake curve—bottom fans can actually help you run your entire system quieter by lowering the baseline temp. #IMAGE_PLACE_HOLDER_E#
The Gear I Use to Keep My Systems Running Cold
I don’t just guess when it comes to performance. My toolkit includes HWiNFO64 for sensor monitoring, but I also rely on specific hardware choices that make life easier. I always choose 140mm fans over 120mm whenever possible for the floor mounts because they move a massive amount of air with a much lower sound pitch. For checking physical air paths, I use a simple handheld duster to see where the air is actually swirling. If you’re worried about storage heat, I’ve found that how to reduce the temperature of your m-2 ssd often involves ensuring those bottom fans are pushing air toward the motherboard’s lower half, providing passive cooling to your drives.
Your Journey Toward a Silent and Powerful Studio
Building a high-performance workstation is a marathon, not a sprint. You don’t need to fix everything tonight, but making small adjustments to your pc cooling setup today will pay dividends in hardware longevity and your own peace of mind. Your gear should serve your creativity, not distract you with the sound of a failing fan. Don’t be afraid to open that side panel and experiment with different fan placements until you find the sweet spot for your specific room and desk setup. If you run into a weird thermal issue you can’t solve, feel free to contact us and we can look at your layout together. Have you checked your GPU junction temperatures today—did you notice a significant drop after adding a bottom intake? Let me know below.
