I’ll never forget the acrid scent of baking electronics that wafted through my studio at 2 AM. I was halfway through a critical architectural walkthrough render, and my workstation sounded like a jet engine trying to take off from a swamp. When I peeked through the side panel, my primary GPU was literally glowing with heat, throttled down to a crawl. I’d spent thousands on hardware but pennies on the actual physics of moving air. It was a classic rookie mistake. I thought more fans automatically meant a colder system. Spoiler alert: I was dead wrong.
The Day My Render Farm Almost Caught Fire
Most of us treat pc cooling strategies to keep your system cold and silent like an afterthought. We buy the biggest cards we can afford, jam them into a case, and pray the factory coolers do their job. But when you have two or three high-wattage cards sandwiched together, they aren’t just processing data; they are actively trying to cook each other. That night, I realized that my top card was sucking in the hot exhaust from the bottom card. It was a feedback loop of thermal doom. It wasn’t just about the heat either; the noise was unbearable. I couldn’t focus, I couldn’t record audio, and I was genuinely worried I was shortening the lifespan of my gear. Today, I’m going to show you how to break that loop. We’re moving past the “just add more fans” mentality and looking at the actual pressure dynamics that keep a multi-GPU rig stable for a 48-hour render marathon. We will dive into how to position your intakes and exhausts to create a slipstream of cool air that reaches the bottom card without being immediately sucked out by the top one.
Does air cooling even work for more than one GPU?
I hear this all the time from folks looking at maximizing their workstation with essential pc components for 2025. They assume you need a complex custom water loop the moment you add a second card. While water is great, it’s also a maintenance nightmare. I’ve found that with the right pc cooling innovations for staying cool during intense gaming and work sessions, you can keep your temperatures well within the safe zone without ever touching a bottle of coolant. The secret isn’t just volume; it’s direction and static pressure. Many builders overlook the benefit of certain card designs, but personally, I’ve learned that why blower fans are better for multi gpu machine learning rigs or high-density rendering setups often comes down to their ability to eject air directly out the back of the case rather than swirling it around the interior.
Don’t Make the Mistake of Vertical Mounting
One of my biggest early blunders was falling for the “gamer” aesthetic. I tried a vertical mount to show off my cards, not realizing why vertical gpu mounts are terrible for air cooled workstations. It choked the fans against the glass and sent my temps through the roof. If you’re serious about rendering, you need to prioritize function over form. I had to learn the hard way that a pretty rig that crashes every four hours is just an expensive paperweight. According to thermal testing data from Puget Systems, even a small gap between GPUs can significantly impact longevity, as modern cards are designed to throttle once they hit specific thermal limits to prevent permanent silicon degradation. This isn’t just about speed; it’s about making sure your investment lasts five years instead of five months. You need to ensure you are positioning your case fans for neutral pressure to avoid dust buildup while maximizing fresh air intake. Have you ever had a render crash because your room got too hot, or have you noticed your fans screaming the moment you hit the ‘Export’ button? Let me know—I’ve been there, and it’s a frustrating place to be. We’re about to fix that.
Stop Stalling Air at the Intake

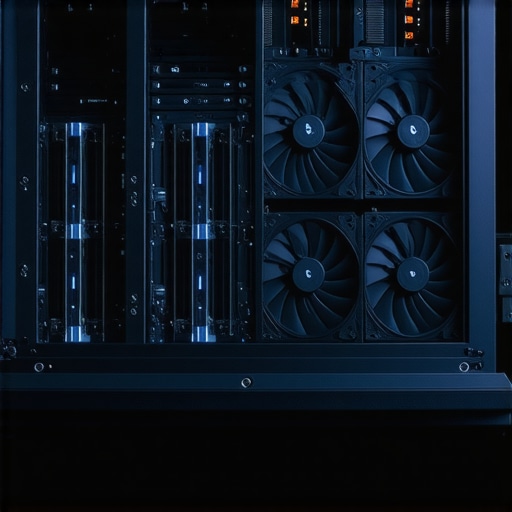

The biggest mistake I see in workstation builds isn’t a lack of fans, but the wrong kind of fans. Think of your PC case like a crowded hallway. If you have fans designed for ‘high airflow,’ they are great at moving air in an empty room, but they fail the moment they hit resistance, like a drive cage or a thick dust filter. This is why we prefer static pressure fans for case intakes. They act more like a pressure washer than a desk fan, forcing cool air through the gaps between your tightly packed GPUs rather than just swirling it around the front panel. I remember a specific build where a client had six expensive fans, yet his top RTX 3090 was hitting 90 degrees. We swapped the front three for high-static pressure models, and the temperature dropped by 12 degrees instantly because the air finally had enough ‘punch’ to reach the back of the case.
The Difference Between a Breeze and a Blast
To keep a high-end rig stable, you need to treat your case like a wind tunnel. If you are using a mesh front, you might think you’re safe, but why your pc case filter is hurting your thermal performance is a real concern when dust starts to cake on the intake. I’ve moved away from ultra-fine filters on my personal rendering rigs because they act like a wall once they get slightly dirty. Instead, I use coarser filters and commit to a monthly cleaning schedule. It sounds like more work, but it’s the difference between a 40-hour render finishing or crashing at 98% because of a thermal spike. When you’re optimizing your workstation pc for maximum productivity and performance, you have to prioritize that consistent flow of fresh oxygen to the GPU blowers.
Ditch the Default Fan Curves
Your motherboard’s ‘Standard’ fan profile is designed for office work, not for 100% GPU utilization during a Redshift or Octane render. You need to take control. Learning how to tune your fan curve for a silent home office while still protecting your hardware is a balancing act. I set my intake fans to ramp up based on the GPU temperature, not the CPU. Most people leave them tied to the CPU, which stays relatively cool during a GPU-heavy render, meaning your case fans stay at a whisper while your graphics cards are literally suffocating. I once lost an entire night of work because I forgot to change this setting; the CPU was idling at 40C, the intake fans were barely spinning, and the GPUs overheated and triggered a system shutdown within twenty minutes of me going to bed.
Clear a Path Through the Cable Jungle
If your internal cabling looks like a bird’s nest, you are creating pockets of stagnant, hot air. I’ve seen beautiful builds ruined by a single thick power cable draped right across the intake path of a bottom GPU. You must learn how to route cables behind a motherboard tray safely to keep the ‘main cabin’ of your PC as empty as possible. This isn’t just about aesthetics; it’s about fluid dynamics. When you pick a case with enough room for cable management, you are actually buying thermal headroom. Every zip tie you use to pull a cable out of the way is an extra degree of cooling for your hardware.
Stop Obsessing Over Sequential Read Speeds
The common wisdom is that ‘faster is always better’ when it comes to storage. You see a box that says 7,000 MB/s and you think it’s going to double your productivity. But here is the contrarian truth: for 90% of workstation tasks, sequential speed is a vanity metric. What actually matters—and what most builders ignore—is sustained write performance and IOPS (Input/Output Operations Per Second). I’ve seen enthusiasts spend a fortune on Gen5 drives only to realize why your ssd write speed is slower than the read speed during a four-hour data dump. If the drive can’t maintain that speed because of a small cache, you’re just paying for a sprint when you needed a marathon runner. When you are maximizing your workflow speed in 2025, look for drives that prioritize endurance over peak burst numbers.
Your NVMe Drive is Living in a Furnace

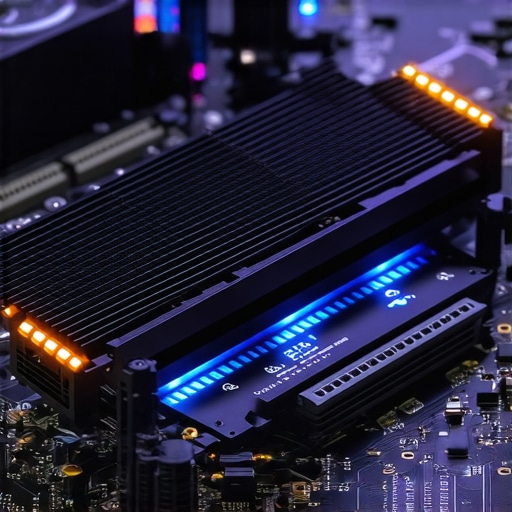

Here is a trap I see all the time. A pro-level builder places their primary boot drive in the M.2 slot directly beneath the GPU. It makes sense for cable management, but it is a disaster for thermals. Your GPU is dumping 300W of heat right onto the SSD controller. I’ve reached a point where I tell clients why your ssd needs a heatsink even for basic office work isn’t a marketing gimmick—it is a stability requirement. I once troubleshot a rig that was ‘randomly’ blue-screening during long renders. It wasn’t the RAM; it was the SSD hitting 90°C and literally shutting down to save its own silicon. This is why we stopped using passive cooling for nvme drives in our high-density builds.
Does Your Storage Configuration Actually Bottleneck Your CPU?
The short answer is yes, but not in the way you think. If you are running your OS, your software, and your source footage all off the same drive, you are creating a massive queue at the controller level. Testing from Puget Systems has shown that splitting your workflow—specifically knowing how to set up a scratch partition on your nvme drive—can drastically improve responsiveness in apps like After Effects or Premiere Pro. You want a dedicated lane for temporary files so your main drive can focus on keeping the system snappily responsive. Have you ever fallen into this trap of thinking one big drive is enough? Let me know in the comments—I’m curious to see how many of you have made the switch to multi-drive setups.
The Hidden Cost of Aesthetic Peripherals
We often focus so much on the internal components that we neglect the interface. People assume mechanical keyboards for precision gaming and typing are just about the clicky sound. The nuance most people miss is plate material. If you’re typing for 10 hours a day, a stiff steel plate will cause finger fatigue faster than a flexible polycarbonate one. It is about picking a keyboard plate material for all day typing that absorbs impact. Similarly, with monitors, people chase 4K resolution but ignore color shifts. If you don’t know how to fix monitor color shifts when viewing from an angle, your color-grading work will be inconsistent the moment you lean back in your chair. When you are optimizing your workstation pc for maximum productivity, every touchpoint matters as much as the GPU temperature.
Keep Your Hardware From Slowing Down Over the Years
I see too many builders finish a project and then never look at their internal sensors again. If you want to avoid the ‘performance cliff,’ you need to become obsessed with telemetry. Personally, I don’t trust the basic dashboard that comes with your GPU software; I use HWiNFO64 religiously. Why? Because it reveals the ‘GPU Hot Spot’ and ‘Memory Junction’ temperatures that other apps hide. If your core is 60°C but your VRAM is hitting 105°C, your cards are dying a slow death. I’ve found that finding the sweet spot for your cpu undervolt and doing the same for your GPU can extend your hardware life by years while cutting down that 2 AM jet-engine noise. It isn’t about losing power; it’s about efficiency. According to the 2023 Backblaze Drive Stats, temperature fluctuations are often more damaging to storage longevity than sustained heat, making a stable, well-tuned environment critical for building a workstation for long-term reliability.
How do I maintain my workstation performance over time?

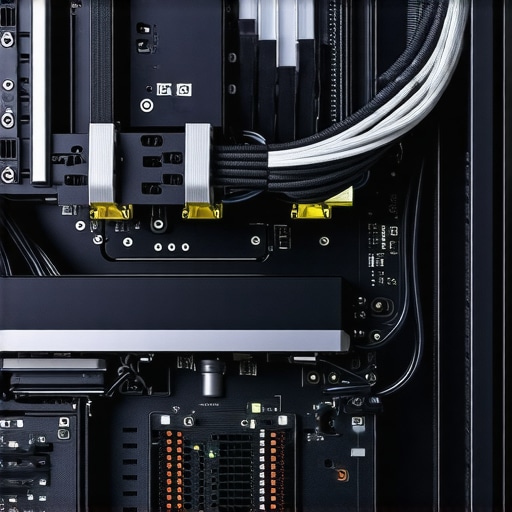

The secret isn’t just dusting; it is proactive part replacement and software hygiene. Every six months, I do a physical audit. I check for the first signs of identifying fan bearing noise before it fails because a seized intake fan at the wrong moment can crash a weekend-long render. I also look at physical stress points. Modern cards are heavy, and if you don’t know how to stop your high-end gpu from sagging and damaging the slot, you are literally risking a snapped PCB. For my SSDs, I run a TRIM command weekly and use manufacturer-specific tools to monitor the ‘Percentage Used’ attribute. It’s about being the mechanic, not just the driver. When you finally go in to clean, make sure you know how to clean your pc without static damage risks, because one spark from a vacuum nozzle can turn your professional rig into a paperweight.
The Pro-Level Shift Toward ECC and Stability
As we look toward the next few years of workstation evolution, the line between ‘high-end desktop’ and ‘entry-level server’ is blurring. We are seeing more creative pros realize why workstations need ecc ram for long render tasks. A single bit-flip during a 48-hour simulation won’t just crash the app; it could bake an error into your final deliverable that you don’t see until it is on the client’s screen. I predict that within two years, Error Correction Code memory will be the standard for anyone serious about 3D or CAD work. We are also moving away from just ‘fast’ storage toward ‘safe’ storage, focusing on the best way to secure your ssd against data rot as project sizes balloon into the tens of terabytes.
Don’t Ignore the Glass in Front of Your Eyes
Finally, your output is only as good as what you can actually see. Even the best professional monitors that enhance productivity lose their calibration over time. I recalibrate my screens every 200 hours of use because the backlights dim and the colors shift toward the yellow spectrum as they age. If you haven’t checked your Delta-E values in six months, you aren’t seeing the true image. I want you to try this today: download HWiNFO64, run a heavy export, and look specifically at your VRAM temperatures. If you’re seeing red, it’s time to rethink that fan curve we talked about earlier. Don’t wait for the smell of ozone to tell you there’s a problem.
3 Expensive Myths That Nearly Ruined My Professional Workflow
One thing I’ve learned the hard way is that over-spec’ing is often a mask for poor engineering. I used to think that throwing money at the most expensive parts would solve stability issues, but I quickly realized that why high speed ram isnt always better for stability is a lesson every pro eventually learns. It’s better to have a rock-solid system that runs at 95% speed than a “bleeding edge” rig that crashes during a client presentation. I also wasted months chasing higher clock speeds, not realizing that a slight undervolt would give me the same performance with significantly less heat. Finally, remember that your workstation is a living system; dust and thermal cycles are constantly trying to how to spot a bottleneck in your workstation workflow before it ruins your deadline.
The Essential Toolkit for Serious Builders
If you want to move beyond being a passive user and become a true maintainer of your craft, there are a few tools I swear by. First, HWiNFO64 is non-negotiable for monitoring every single sensor in your build; it catches the thermal issues that basic dashboards miss. For physical maintenance, skip the canned air and invest in an electric duster to prevent moisture damage to your PCB. To ensure your creative work is actually accurate across different platforms, a hardware colorimeter is the only way to ensure professional monitors enhance productivity by staying true to the source. If you ever feel stuck or need specific advice on your unique setup, don’t hesitate to reach out via our contact page.
#IMAGE_PLACEHOLDER_E#
Build a Machine That Labors So You Can Create
At the end of the day, all this talk of static pressure, SSD endurance, and fan curves serves one purpose: to get the technology out of your way. When you spend the time optimizing your workstation pc for maximum productivity and performance, you are buying yourself peace of mind. You’re ensuring that when inspiration strikes at 3 AM, your hardware will be ready to keep up with your imagination without a single thermal throttle or blue screen. Focus on how to build a workstation for long term reliability, and the results will speak for themselves. Have you ever found a hidden bottleneck that was slowing down your entire creative process? Let me know in the comments below!
